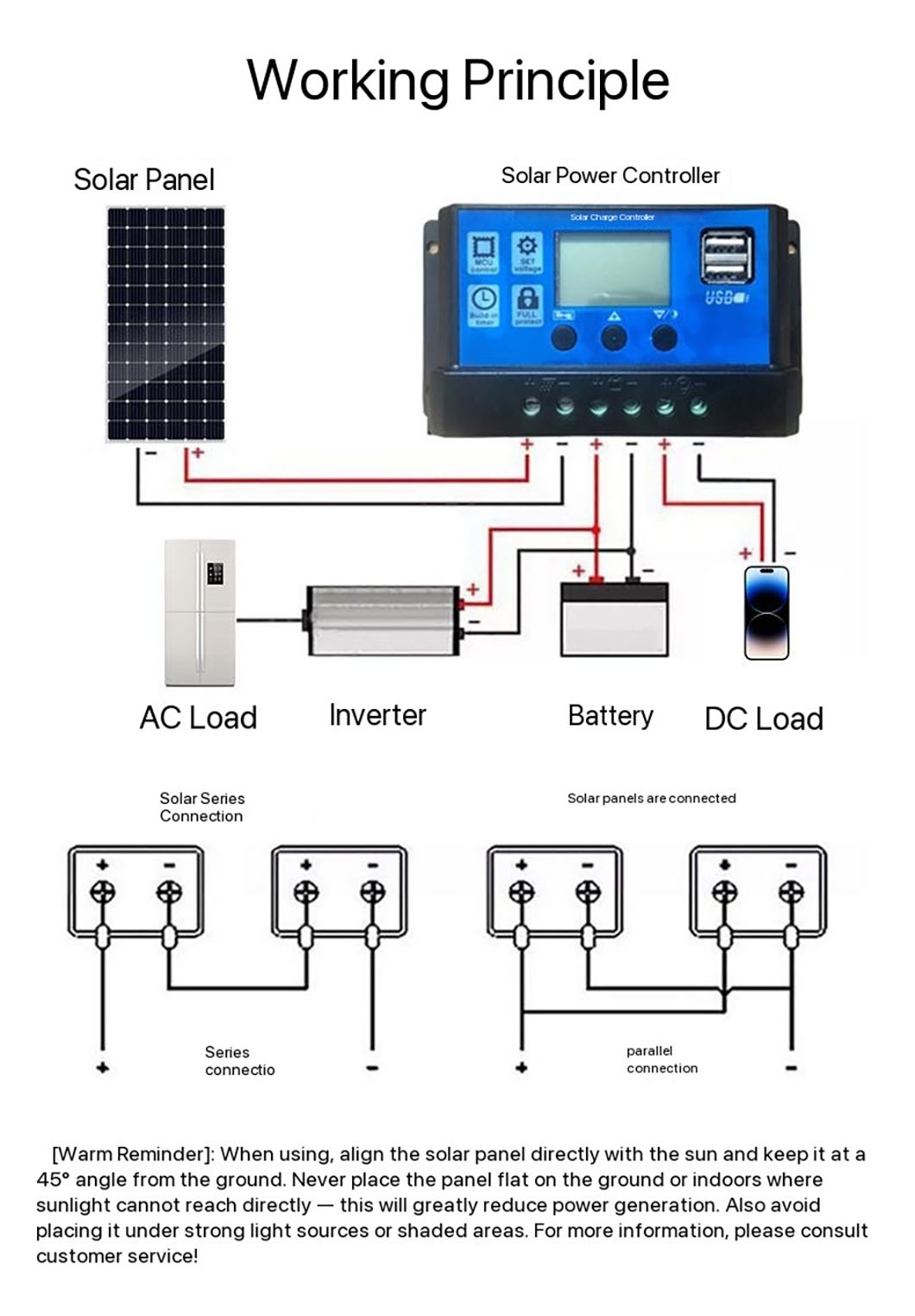

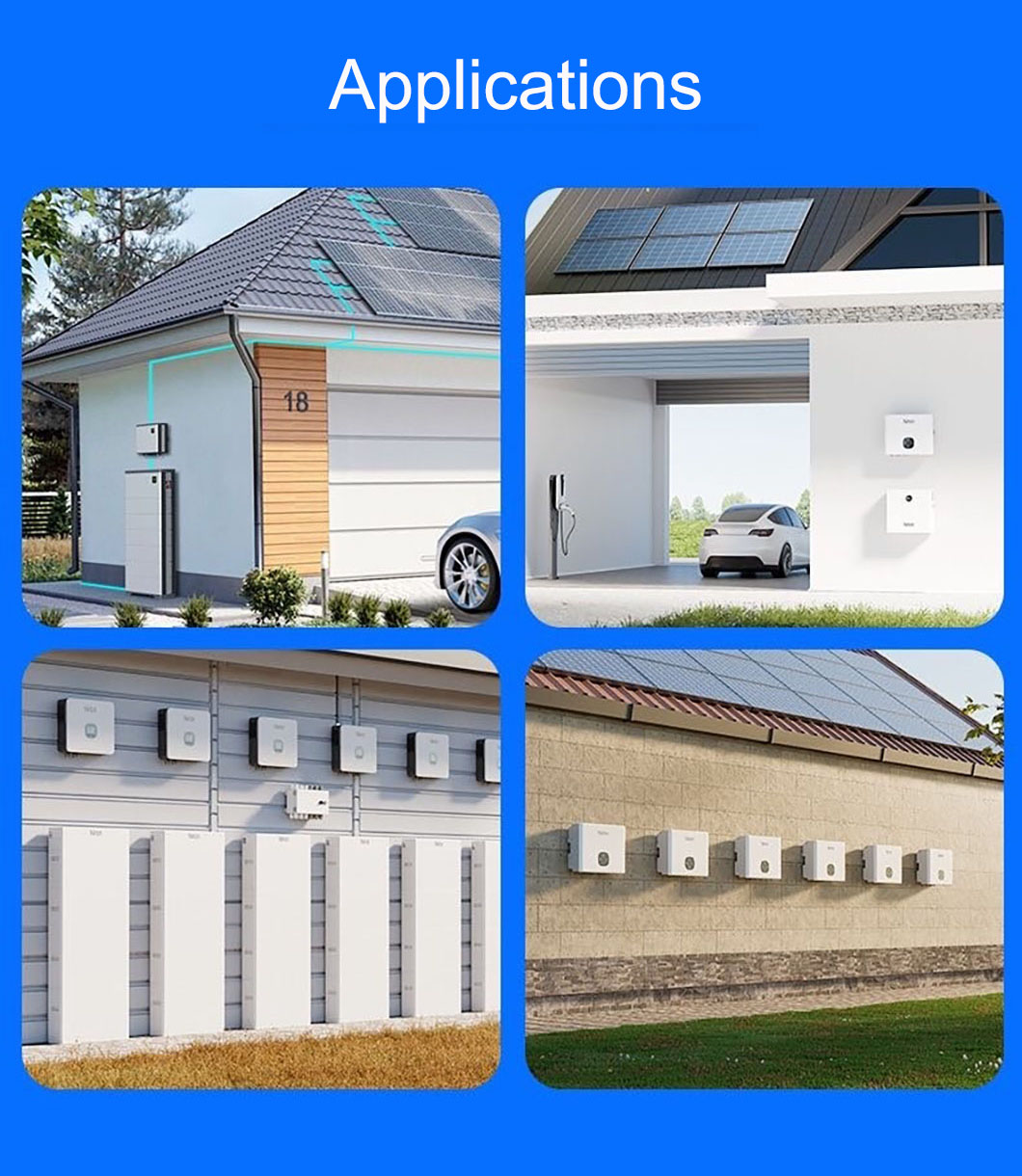

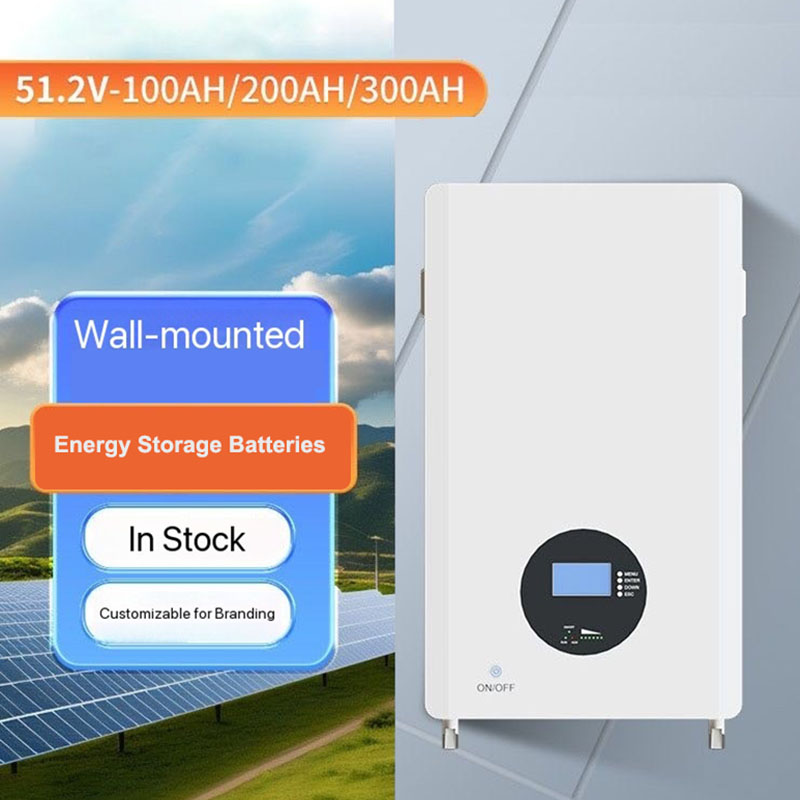

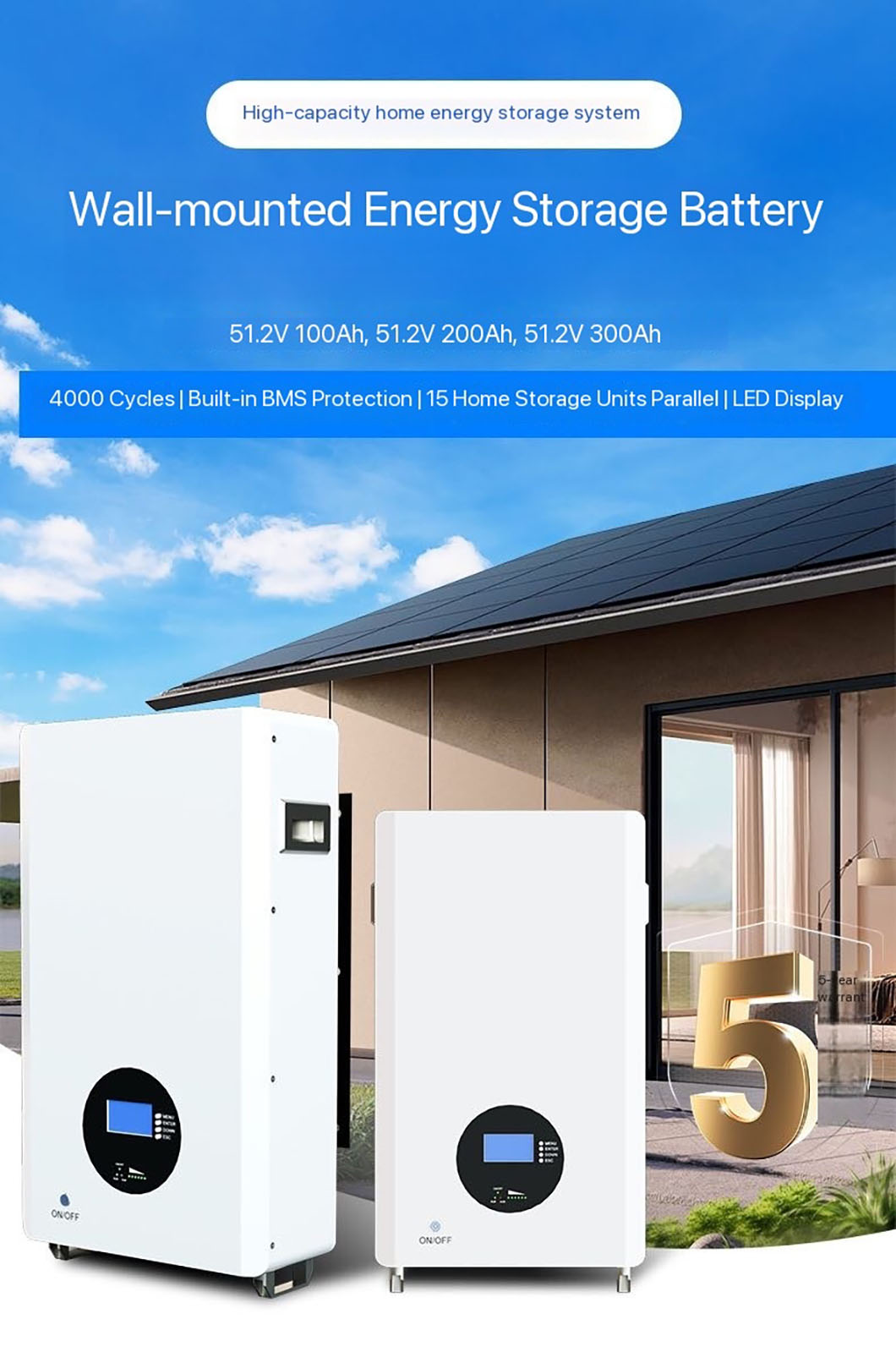

The home energy storage system is a device that can convert renewable energy such as solar and wind energy into electrical energy for storage. Its main function is to enhance the self-sufficiency of households, reduce energy costs, and promote the utilization of renewable energy .
Each battery with independent BMS system manages power output smartly and effectively.
Equipped with first class design,bring stable and reliable operation to the equipment.

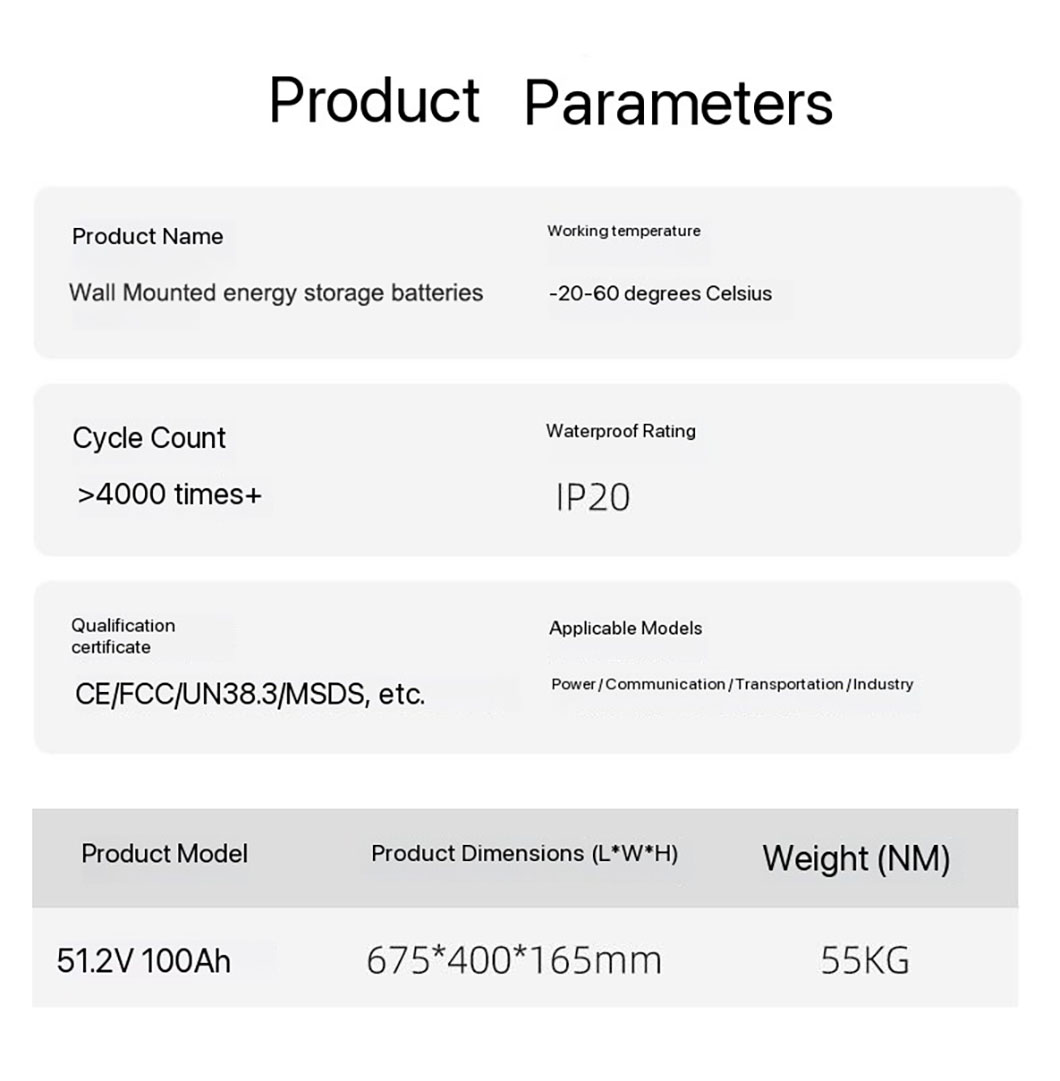

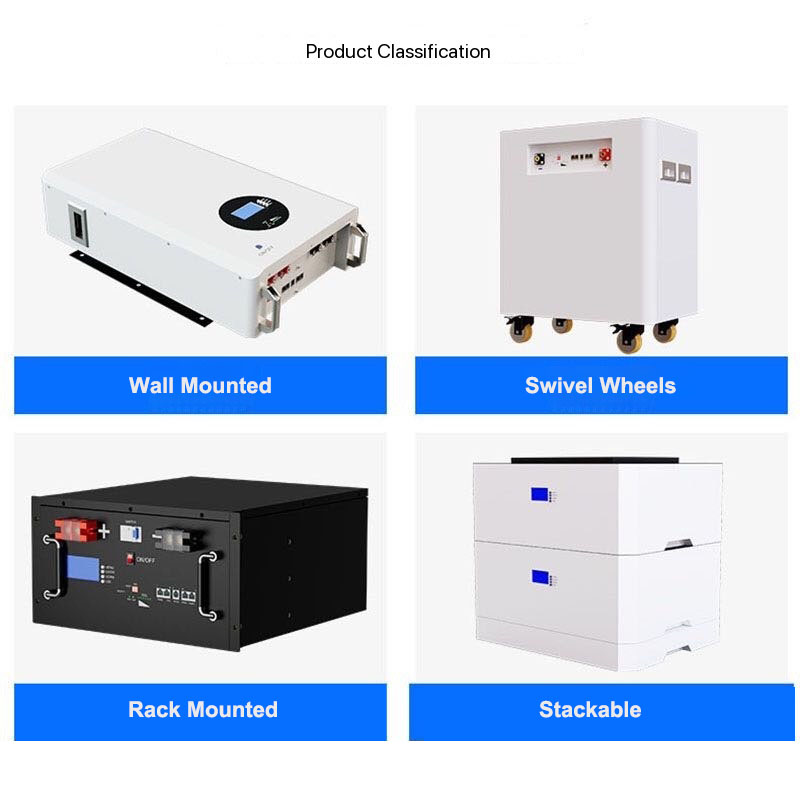

| Model | OESHAN20251206-DS01(Wall-Mounted) | OESHAN20251206-DS01(Stackable) | OESHAN20251206-DS01(Floor standing) |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Rated Capacity | 100AH | 200Ah | 300Ah |
| Battery Cell | A grade Aluminum casing lithium battery | A grade Aluminum casing lithium battery | A grade Aluminum casing lithium battery |
| Parallel /series Capacity | Yes | Yes | Yes |
| Charge Current | 100A | 100A | 100A |
| Discharging Current | 100A | 100A | 100A |
| Discharge Voltage | 40v | 40V | 40V |
| Charge Voltage | 58.4V | 58.4V | 58.4V |
| Cycle Life | 4000 Cycles | 6000 Cycles | 8000 Cycles |
| Weight | 51kg | 100kg | 135kg |
| Size | 675*400*165mm | 730*475*255mm | 745*570x255mm |
